cables

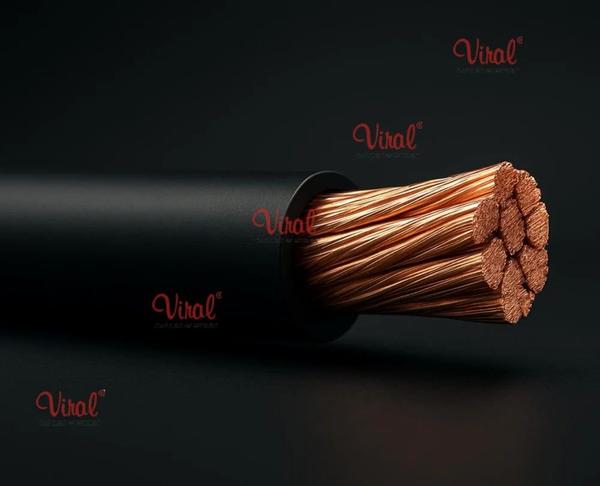

Product Details: Brand/Model: Viral Wires & Cables Conductor Material: EC grade copper (99.97% pure) Insulation Material: TPV (Thermoplastic Vulcanizate) Sheath Type: HOFR (Heat & Oil Resistant, Flame Retardant) Cooling: Air-cooled Standards Compliance: IS 8130:1984, IS 6380:1984 Maximum Nominal Size: 16 mm diameter Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm, 35 sq. mm, 50 sq. mm, 70 sq. mm, 95 sq. mm, 120 sq. mm Product Description: Our TPV MIG Welding Torch Cables are engineered for high performance in MIG welding machines used across welding, fabrication, and automotive industries. Manufactured from 99.97% pure EC grade copper, these cables offer excellent conductivity, flexibility, and long-lasting durability. With robust construction, they provide reliable performance even under demanding conditions. Key Features: Conductors made of plain or tinned annealed high-conductivity copper wires Insulation: Type SE 1 for general duty or Type SE 3 for heat- and oil-resistant applications Air-cooled design ensures safe operation under continuous use Sturdy and flexible for long-term industrial use Applications: Welding Industry Fabrication Industry Automotive Industry Typical Duty Cycles: Automatic Welding: Up to 100% Semi-Automatic Welding: 30–85% Manual Welding: 30–60% Very Intermittent Use: Up to 20% These MIG Welding Torch Cables are built to deliver superior performance, electrical efficiency, and mechanical strength for a wide range of industrial welding applications.

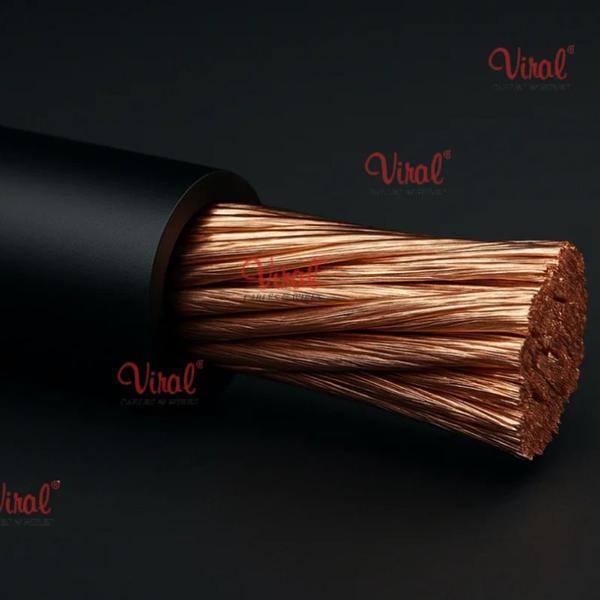

Product Details: Conductor Material: Copper (100% Electrolytic & Oxygen-Free) Number of Cores: Single Core Cable Type: Battery and Battery Charging Equipment Maximum Withstand Temperature: Up to 90°C Nominal Conductor Cross-Section: 25 sq. mm Maximum Strand Diameter: 0.21 mm Maximum Conductor Resistance: 0.780 Ohms/km (at 20°C, 85% duty cycle) Available Sizes: 2.5 sq. mm, 4 sq. mm, 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: We offer high-quality 4 Sq. mm Single Core Standard Battery Cables, ideal for battery charging and related equipment. These cables are manufactured using 100% electrolytic and oxygen-free copper conductors, ensuring excellent conductivity and long-term reliability. Key Features: Acid-resistant thermoplastic vulcanizate (TPV) insulation for durability Suitable for battery chargers and electrical applications High-quality construction for consistent performance and safety These cables combine flexibility, durability, and superior conductivity, making them ideal for battery charging units, automotive applications, and industrial use.

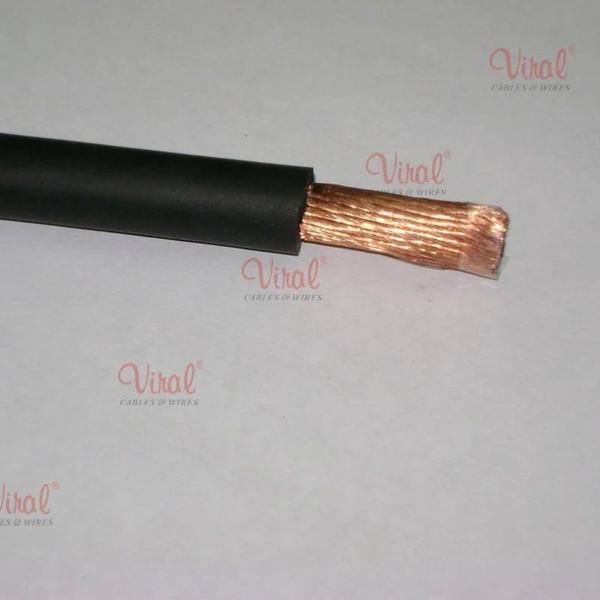

Product Details: Conductor Material: Copper Number of Cores: Single Core Maximum Size: 95 sq. mm Nominal Conductor Cross-Section: 95 sq. mm Maximum Strand Diameter: 0.31 mm Maximum Conductor Resistance: 0.206 Ohms/km (at 20°C, 85% duty cycle) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: Viral Electronics manufactures premium 10 Sq. mm Single Core Superflex Battery Cables, ideal for use with bolted connectors in 2-volt traction batteries. These cables are designed for superior flexibility, durability, and resistance to harsh environmental conditions. Key Features: Exceptional flexibility for easy handling and installation Resistant to sulphuric acid, oil, salt, and water Suitable for high-performance battery applications Technical Details: Conductors: Plain annealed high-conductivity copper wires complying with IS 8130:1984 Flexibility: Class 6 type as per IS 8130:1984 Temperature Rating: Standard up to 90°C; optional up to 200°C on request Covering: General service normal duty elastomeric compound, Type SE 1, conforming to IS 6380:1984 These cables provide a combination of strength, flexibility, and chemical resistance, making them ideal for traction batteries and demanding industrial applications.

Product Details: Conductor Material: Copper Number of Cores: Single Core Power/Voltage Rating: 650/1100 Volts Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 25 sq. mm Maximum Strand Diameter: 0.21 mm Maximum Conductor Resistance: 0.780 Ohms/km (at 20°C, 85% duty cycle) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: Viral Electronics manufactures high-quality 25 Sq. mm Single Core Superflex Battery Cables, ideal for battery charging units, automotive batteries, solar installations, inverters, and gensets. These cables are designed for excellent flexibility, durability, and reliable performance in demanding environments. Key Features: Highly flexible for easy installation Resistant to sulphuric acid and harsh chemicals Insulation withstands up to 90°C (optional up to 200°C on request) Oxygen-free high-conductivity copper conductors Technical Details: Conductors: Plain annealed, high-conductivity copper wires, complying with IS 8130:1984 Flexibility: Class 5 type as per IS 8130:1984 Covering: General service normal duty elastomeric compound, Type SE 1, conforming to IS 6380:1984 These cables combine superior conductivity, flexibility, and chemical resistance, making them suitable for industrial, automotive, and renewable energy applications.

Product Details: Conductor Material: Copper Core Options: Single, 2, 3, 4, 5 Insulation Material: PVC Cable Type: Battery Cable Nominal Conductor Cross-Section: 240 sq. mm Maximum Strand Diameter: 0.5 mm Maximum Conductor Resistance: 0.08 Ohms/km (at 20°C, 85% duty cycle) Size: 16 sq. mm Product Description: Viral Electronics manufactures high-quality PVC Insulated Battery Cables, ideal for battery charging units, automotive applications, railways, traction forklift chargers, and solar batteries. These cables are designed for durability, flexibility, and safe performance under demanding conditions. Key Features: Oil and acid resistant Shock-absorbing for safe handling Ergonomic and flexible design Soft texture for easy installation Technical Details: Conductors: Made of plain annealed high-conductivity copper wires complying with IS 8130:1984 Flexibility: Class 5 type as per IS 8130:1984 Temperature Rating: Withstands up to 105°C Covering: PVC compound for general service, complying with IS 5831:1984

Product Details: Conductor Material: Copper Number of Cores: Single Core Insulation Material: Rubber Cable Type: Battery Cable Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 6 sq. mm – 120 sq. mm Maximum Strand Diameter: 0.4 mm Maximum Conductor Resistance: 0.554 Ohms/km (at 20°C, 85% duty cycle) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm, 35 sq. mm, 50 sq. mm, 70 sq. mm, 95 sq. mm, 120 sq. mm Product Description: With extensive industry experience, we offer a premium range of Traction Battery Cables, known for their superior quality and reliable performance. These cables are designed to provide excellent conductivity, flexibility, and durability for demanding battery applications. Manufactured using high-quality materials under the supervision of skilled professionals, these cables adhere to strict quality standards, ensuring long service life, safety, and maximum customer satisfaction.

Product Details: Conductor Material: Copper Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 35 sq. mm Maximum Strand Diameter: 0.21 mm Maximum Conductor Resistance: 0.554 Ohms/km (at 20°C, 85% duty cycle) Standard: IS 8130:1984 Core Type: Single Core Class: 6 Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: With extensive industry expertise, we provide high-quality 35 Sq. mm Single Core Standard Battery Cables that are valued for their durability and reliable performance. These cables offer excellent conductivity and are suitable for a wide range of battery applications. Manufactured using premium-grade copper under the supervision of skilled professionals, these cables meet stringent industry standards. Rigorous quality control ensures each cable delivers consistent performance, long service life, and complete customer satisfaction.

Product Details: Conductor Material: Copper Length: 100 meters Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 70 sq. mm Maximum Strand Diameter: 0.31 mm Maximum Conductor Resistance: 0.272 Ohms/km (at 20°C, 85% duty cycle) Standard: IS 8130:1984 Core Type: Single Core Class: 6 Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: With extensive industry experience, we offer a premium range of Single Core Standard Battery Cables designed for reliable and long-lasting performance. These cables are highly regarded for their superior conductivity, durability, and consistent operation under demanding conditions. Manufactured using high-quality copper and advanced production techniques under expert supervision, these cables comply with industry standards. Our rigorous quality control ensures every cable delivers maximum efficiency and complete customer satisfaction.

Product Details: Conductor Material: Copper Brand: Viral Cables and Wires Maximum Strand Diameter: 0.31 mm Maximum Conductor Resistance: 0.386 Ohms/km (at 20°C, 85% duty cycle) Nominal Conductor Cross-Section: 50 sq. mm Standard: IS 8130:1984 Maximum Withstand Temperature: 90°C Core Type: Single Core Class: 6 Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: With extensive industry experience, we offer a high-quality range of 50 Sq. mm Single Core Standard Battery Cables, known for their excellent performance and durability. These cables are widely trusted for their superior conductivity, robust construction, and reliable operation in demanding applications. Manufactured using premium-grade copper under the supervision of skilled professionals, these cables meet stringent industry standards. Every cable undergoes rigorous quality control to ensure maximum efficiency, long service life, and complete customer satisfaction.

Product Details: Size: 100 sq. mm Conductor Material: Copper Standard: IS 8130:1984 Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 95 sq. mm Maximum Strand Diameter: 0.31 mm Maximum Conductor Resistance: 0.206 Ohms/km (at 20°C, 85% duty cycle) Core Type: Single Core Class: 6 Product Description: With extensive industry experience, we offer a high-quality range of Single Core Standard Battery Cables designed for reliable and efficient performance. These cables are widely appreciated for their durability, excellent conductivity, and long service life. Manufactured using premium-grade copper and advanced production processes under expert supervision, our cables meet industry standards and ensure consistent performance. Strict quality control measures are followed to deliver products that provide maximum customer satisfaction.

Product Details: Conductor Material: Copper Core Type: Single Core Class: 6 (Superflex) Standard: IS 8130:1984 Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 35 sq. mm Maximum Strand Diameter: 0.21 mm Maximum Conductor Resistance: 0.554 Ohms/km (at 20°C, 85% duty cycle) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: Backed by rich industry experience, we offer a premium range of Single Core Superflex Battery Cables known for their superior quality and high flexibility. These cables are widely trusted for their durability, efficient conductivity, and long operational life. Manufactured using high-grade copper and advanced techniques under the supervision of skilled professionals, these cables comply with industry standards and deliver consistent performance. Our stringent quality control ensures reliability and maximum customer satisfaction.

Product Details: Conductor Material: Copper Standard: IS 8130:1984 Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 50 sq. mm Maximum Strand Diameter: 0.31 mm Maximum Conductor Resistance: 0.386 Ohms/km (at 20°C, 85% duty cycle) Core Type: Single Core Class: 6 (Superflex) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: With extensive industry expertise, we offer a high-quality range of Single Core Superflex Battery Cables designed for superior flexibility and performance. These cables are widely appreciated for their robust construction, excellent conductivity, and long service life. Manufactured using premium-grade copper and advanced production methods under expert supervision, these cables comply with industry standards and deliver reliable performance. Our strict quality control ensures maximum durability and complete customer satisfaction.

Product Details: Conductor Material: Copper Standard: IS 8130:1984 Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 70 sq. mm Maximum Strand Diameter: 0.31 mm Maximum Conductor Resistance: 0.272 Ohms/km (at 20°C, 85% duty cycle) Core Type: Single Core Class: 6 (Superflex) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: Leveraging our extensive industry experience, we offer a wide range of Single Core Superflex Battery Cables known for their excellent flexibility and superior performance. These cables are highly valued for their durability, efficient conductivity, and long service life. Manufactured using high-quality copper and advanced production techniques under expert supervision, these cables meet industry standards and ensure reliable operation. Our commitment to quality and precision helps us deliver products that provide maximum customer satisfaction.

Product Details: Conductor Material: Copper Standard: IS 8130:1984 Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 95 sq. mm Maximum Strand Diameter: 0.31 mm Maximum Conductor Resistance: 0.206 Ohms/km (at 20°C, 85% duty cycle) Core Type: Single Core Class: 6 (Superflex) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: Backed by extensive industry experience, we offer a premium range of 95 Sq. mm Superflex Battery Cables designed for superior performance and durability. These cables are widely appreciated for their high flexibility and excellent conductivity, making them ideal for demanding battery applications. Manufactured using high-grade copper and advanced processes under the supervision of skilled professionals, these cables ensure reliability, long service life, and maximum efficiency. Strict quality control measures are followed to meet industry standards and deliver complete customer satisfaction.

Product Details: Conductor Material: Copper Core Type: Single Core Insulation Material: PVC Conductor Size Range: 6 sq. mm to 25 sq. mm Maximum Strand Diameter: 0.4 mm Maximum Conductor Resistance: 0.272 (at 20°C, 85% duty cycle) Maximum Withstand Temperature: 90°C Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Product Description: We offer premium-quality Inverter Battery Cables that are ideal for use with professional power inverters. Designed for reliable and efficient performance, these cables are available in various specifications to suit different application requirements. Key Features: Suitable for both vehicle and shop installations Equipped with battery terminal connectors and tinned contacts for easy installation Manufactured as per international standards such as ASTM, BS, and DIN High-quality copper or tinned copper conductors for superior conductivity Durable insulation options in PVC or rubber Inner sheath with rubber or double insulation for added safety Extra flexible design for convenient handling and installation Excellent resistance to oil, heat, and flame Strong electrical and mechanical performance These cables are engineered to deliver durability, safety, and consistent power transmission in inverter and battery applications.

Product Details: Material: Copper Insulation Material: PVC Nominal Conductor Cross-Section: 150 sq. mm Maximum Strand Diameter: 0.5 mm Maximum Conductor Resistance: 0.129 (at 20°C, 85% duty cycle) Maximum Withstand Temperature: 90°C Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Core Options: Single, 2, 3, 4, and 5 core Product Description: We offer high-quality Copper Battery Cables designed for efficient power transmission and long-lasting performance. These cables feature 90°C rated PVC insulation along with copper or tinned copper conductors, ensuring excellent conductivity and durability. Key Features: Available in single-core and twin-core configurations High-conductivity copper or tinned annealed copper conductors Superior insulation with low smoke and halogen-free properties Strong outer jacket made of PVC or XLPE for enhanced protection Available in multiple sheath colors such as red and black Options for different outer diameters to suit varied applications Transparent PVC jacket options available Manufactured under strict quality standards, these battery cables are suitable for a wide range of electrical and automotive applications, ensuring safety, reliability, and consistent performance

Conductor Material: Copper Insulation Material: PVC Maximum Withstand Temperature: 90°C Nominal Conductor Cross-Section: 4 sq. mm Maximum Strand Diameter: 0.3 mm Maximum Conductor Resistance: 4.95 (at 20°C, 85% duty cycle) Available Sizes: 6 sq. mm, 10 sq. mm, 16 sq. mm, 25 sq. mm Number of Cores: Single, 2, 3, 4, and 5 core options Product Description: Backed by extensive industry experience and expertise, we offer a wide range of high-quality Solar Battery Cables. These cables are well-regarded for their durability and reliable performance. Manufactured using premium-grade materials and advanced techniques under the supervision of skilled professionals, our products are designed to meet the highest standards of quality and ensure maximum customer satisfaction.

Number of Cores 2 Core Conductor Material Copper Min Voltage 2 kV Max Voltage 100 kV Type High Voltage Insulation Material PVC Aircraft Ignition Cable can be offered in various construction & specifications as required by customer needs. Features: High voltage cables Customized cables as per need Application: Used in aircraft engine for ignition system. Can be offered for all kinds of Ignition Applications.

Number of Cores 1 Core Conductor Material Copper Insulation Material PVC Min Voltage 2 kV Max Voltage 100 kV Type High Voltage We at viral electronics manufacture High Voltage Cable to use as test leads for the automatic capacitance test and tan delta test sets. Features: High voltage cables Customized cables as per need

We are a leading company engaged in offering a wide range of PVC insulated Multi Core Flexible Cables. These are having a wide range of application in machine tools, appliances, control panels, machinery and industries of every nature. PVC insulated multi-core sheathed cables are manufactured as per IS 694/1990, in sizes from 0.5 sq.mm. to 240 sq. mm in single core and in sizes 0.5 sq.mm. to 4 sq.mm. upto 5 cores. These sizes carry ISI mark. The rest of the sizes also generally conform to IS: 694/1990.Where the number of cores exceeds 5, two adjacent cores are blue for reference and yellow for direction in each layer. The remaining cores in each layer are Grey. On specific request, number printing on cores can also be provided. The data and information given herein are purely as a guide. VIRAL takes no responsibility for any damages arising out of incorrect use. Following are some detail information of cables: Conductors: The conductors are drawn from bright electrolytic grade copper and annealed conductors are bunched together Insulation: Bunched conductors are insulated with specially formulated, in-house developed PVC compound with high insulation resistance values Sheath: In case of multi-core cables, the insulated cores are laid up to form the core assembly. The inner cores are coded for ease of identification as per National/International coding practices. The sheathing is provided with specially formulated PVC compound to facilitate not only ease in stripping but also to withstand mechanical abrasion while in use Quality Control: Rigid tests and checks at every stage, from raw material through manufacturing stages and finally upto the finished product ensure that the cables meet National / International standards, and consumer approval

Impedance 50 Ohms Insulation Material PE, PVC Color GREY/ BLACK Material Copper Type TRIAXIAL CABLES Brand VIRAL CABLES & WIRE Number of Core 1, 3, 2 Length 500 METERS Power/Voltage LOW VOLTAGE Cable Conductor And Alloys Packaging Type Rolls Cable Jacket Polyolefins Application Used as a Probe for Nuclear Leakage Measuring Detecting Instrument Diameter 0.2 mm Triaxial cable, often referred to as triax for short, is a type of electrical cable similar to coaxial cable, but with the addition of an extra layer of insulation and a second conducting sheath. It provides greater bandwidth and rejection of interference than coax, but is more expensive.

Conductor Material Copper Material Copper Number of Core 3, 5, Single, 4, 2 Brand Viral Color Black Armored GI Sheet Rated Voltage 450 / 750V Sheath Material PVC or Flame-Retardant PVC Instrumentation Cables offered comprises flame retardant control cables that perfectly support the requirements of instrumentation control. Features: Copper conductor coming with PVC insulated and sheathed finish Product coming backed by CE and other industry certifications Details: High quality construction finish Conductor support comprising stranded copper conductor with insulation support of PVC material Sheath options of PVC or flame-retardant PVC Insulation color as per standards Suitable for use in measuring controlling/regulation for assembly and production line Available as per standards as BS, DIN and others

Number of Cores Multi Cores Number of Core 4, 5, Single, 3, 2 Power/Voltage 650/110 volts Packaging Type Rolls Conductor Type Copper Sheath Type PVC Min Nominal Size 0.05 sq.mm Max Nominal Size 120 sq.mm With vast experience and knowledge we are involved in offering an extensive range of Special Purpose Cables. These are highly reckoned among our clients due to their superior quality. Offered cables are manufactured using best quality ingredients under the supervision of highly skilled professionals to render maximum client satisfaction.

Conductor Material Copper Number of Core 2 Core, 3 Core, 4 Core Packaging Type Rolls Sheathing Material PVC,70 deg C / 105 deg C Halogen free FRLS PVC Compound,Polyethylene,TPE,HOFR and Silicon Rubber Armouring Material G.I. Steel Wire/Strip Min Nominal Size 0.22 Sq.mm. . Max Nominal Size 2.5 Sq.mm We at Viral Electronics manufacture Multipair Instrumentation Cables suitable for purpose of Instrumentation. In the projects related to power generation & distribution, chemical, fertilizer, sugar Industries and various other types industries. The process instrumentation plays an important role in measuring and controlling of various process in the manufacturing of commodities. Shield is provided to prevent harmful electrostatic interface. There are three basic reasons for providing an electrostatic shield in a cable. The first important reason concerns the need to keep external electrical disturbances from affecting the signal in the cable. The second reason is to prevent the signal in the cable from being detectable at location other than at the cable ends. And the third reason is the elimination of unwanted transfer of signal between circuits in the same cable classified as below. Range of Instrumentation Cables: Higher sizes of Electrolytic Bare/Tinned, Solid/Stranded Copper Insulation: We can offer insulation on conductors of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request Shielding: Aluminum Mylar taped with ECC with drain wire. Individual element and overall shielding as specified Or Shielding with Bare /Tinned / SPC Braided . Armouring: G.I. Steel Wire/Strip armoured. Sheathing: We can offer sheathing of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request. Details: BS-5308 (Part-I or II) IEC-189 (Part-I or II)

Conductor Material Copper Insulation Material 70 deg C / 105 deg C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber Armored G.I. Steel Wire / Strip Armoured Brand Viral Min Nominal Size 0.22 Sq.mm. Max Nominal Size 2.5 Sq.mm We at Viral Electronics manufacture Multi Core Shielded Instrumentation Cables suitable for purpose of Instrumentation. In the projects related to Power Generation & Distribution, Chemical, Fertilizer, Sugar Industries and various other types Industries. The process instrumentation plays an important role in measuring and controlling of various processes in the manufacturing of commodities. Shield is provided to prevent harmful electrostatic interference. There are three basic reasons for providing an electrostatic shield in a cable. The first important reason concerns the need to keep external electrical disturbances from affecting the signal in the cable. The second reason is to prevent the signal in the cable from being detectable at location other than at the cable ends. And the third reason is the elimination of unwanted transfer of signal between circuits in the same cable classified as below. Range of Instrumentation Cables: Higher sizes of Electrolytic Bare/Tinned,SPC, Solid/Stranded Copper Insulation: We can offer insulation on conductors of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request. Shielding: Aluminum Mylar taped with ECC with drain wire. Individual element and overall shielding as specified Or Shielding with Bare /Tinned / SPC Braided . Sheathing: We can offer sheathing of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request. Details: BS-5308 (Part-I or II) IEC-189 (Part-I or II)

Number Of Cores 3 core Brand Viral Material Copper Standards BS-5308 (Part-I or II), IEC-189 (Part-I or II) Sheathing Material PVC, 70 deg C / 105 deg C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber Min Nominal Size 0.22 Sq.mm. Max Nominal Size 2.5 Sq.mm Shielded Cables offered comprise shield fire resistant cables that are extensively used in different areas like in fire fighting plants. Features: Comes with aluminium foil and LSZH outer sheath Halogen-free cable with improved fire characteristics Details: Suitable for use in areas like fire alarm systems, emergency lighting Easy installation requirements Permitted operating temperature of conductor at +90°C Conductor options comprising bare copper ad insulation option comprising double insulation, cross-linked special compound Inner covering comprising glass fibre tape Shielding options of Al-laminated tape and tinned copper drain wire

Conductor Material Copper Armored G.I. Steel Wire/Strip Armoured Packaging Type Rolls Number of Core 3 Sheathing 70 deg C / 85 deg C Grade PVC Conductor Insulation 70 deg C/ 85 deg C Grade PVC Min Nominal Size 0.22 Sq.mm. Max Nominal Size 2.5 Sq.mm. We at Viral Electronics manufacture Triad Shielded Instrumentation Cables suitable for purpose of Instrumentation. In the projects related to power generation & distribution, chemical, fertilizer, sugar Industries and various other types industries. The process instrumentation plays an important role in measuring and controlling of various process in the manufacturing of commodities. Shield is provided to prevent harmful electrostatic interface. There are three basic reasons for providing an electrostatic shield in a cable. The first important reason concerns the need to keep external electrical disturbances from affecting the signal in the cable. The second reason is to prevent the signal in the cable from being detectable at location other than at the cable ends. And the third reason is the elimination of unwanted transfer of signal between circuits in the same cable classified as below. Range of Instrumentation Cables: Higher sizes of Electrolytic Bare/Tinned, Solid/Stranded Copper Shielding: Aluminium Mylar tape screened with copper drain wire. Individually element and overall shielding as specified . Details: BS-5308 (Part-I or II) IEC-189 (Part-I or II)

Conductor Material Copper Protection Type Shielded Conductor Type Copper Min Nominal Size 0.5 sq mm Max Nominal Size 2.5 Sq.mm Armouring G.I. Steel Wire/Strip armoured Multi Pairs Shielded Instrumentation Cables offered find use as signal and control cables and supports transmission of data where protection against electro-magnetic field is required. Features: Fine strands of bare copper wire PVC core as per DIN and other industry standards Cores coming twisted in pair with PVC outer sheath PVC insulated and sheathed type screened cable Suitable for use as signal and data control cable in control circuits, computer systems, production lines Presence of tinned copper wire screen for offering protection from electromagnetic interference Conductors comprising plain annealed flexible copper Sheath comprising PVC finish

Conductor Type Stranded Material Copper Diameter see specification sheet Insulation Material PVC Standards IS 694/2010 Min Nominal Size 0.5 sq.mm Max Nominal Size 240 sq. mm Wire Size 0.5 sqmm,0.75 sqmm,1 sqmm,1.5 sqmm,2.5 sqmm,4 sqmm. For the diverse requirements of our clients we are involved in offering an extensive range of Single Core Heavy Duty Flexible Cables. These are made using fine quality material and advanced technology that ensures their long life. Offered products are acknowledged among our clients due to their fine quality and superior finishing. Moreover, we also assure timely delivery of our products. Features: Cost effective Fine quality Widely used

Wire Size 0.75 sqmm Insulation Material PVC Roll Length 180 m Number Of Cores Single Core Conductor Copper Suitable for Buildings, Construction, Homes Country Of Origin Made in India Single core PVC insulated cable

Wire Size 1.5 Sqmm Conductor Type Copper Voltage 1100V Fire Resistant Yes Insulation Material PVC Number Of Cores Single We at Viral Electronics manufacture House & Electric Panel Wiring Wires. Wiring Cables, PVC insulated Sheathed / Unsheathed with plain annealed electrolytic copper conductor conforming to IS: 694:1990 for working voltages upto and including 1100V.

Wire Size 6 sqmm Conductor Type Copper Voltage 1100V Fire Resistant Yes Insulation Material PVC Number Of Cores Single We at Viral Electronics manufacture House & Electric Panel Wiring Wires. Wiring Cables, PVC insulated Sheathed / Unsheathed with plain annealed electrolytic copper conductor conforming to IS: 694:1990 for working voltages upto and including 1100V.

Wire Size 4 sqmm Fire Resistant Yes Conductor Type Copper Voltage 1100V Insulation Material PVC Number Of Cores Single We at Viral Electronics manufacture House & Electric Panel Wiring Wires. Wiring Cables, PVC insulated Sheathed / Unsheathed with plain annealed electrolytic copper conductor conforming to IS: 694:1990 for working voltages upto and including 1100V.
