instrumentation cables

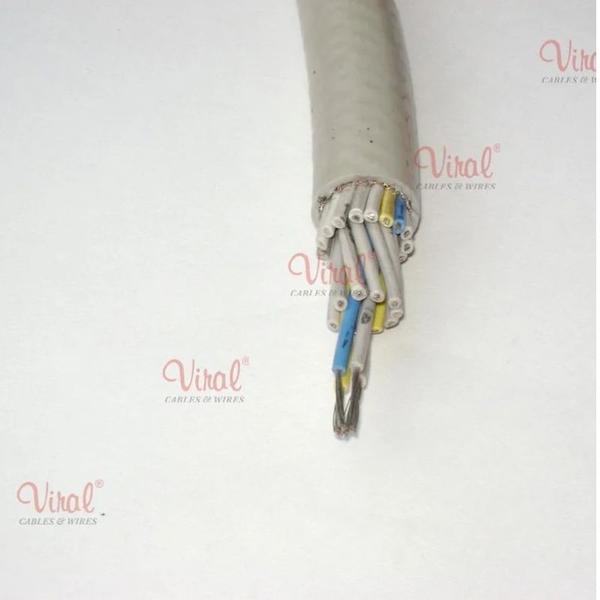

We are a leading company engaged in offering a wide range of PVC insulated Multi Core Flexible Cables. These are having a wide range of application in machine tools, appliances, control panels, machinery and industries of every nature. PVC insulated multi-core sheathed cables are manufactured as per IS 694/1990, in sizes from 0.5 sq.mm. to 240 sq. mm in single core and in sizes 0.5 sq.mm. to 4 sq.mm. upto 5 cores. These sizes carry ISI mark. The rest of the sizes also generally conform to IS: 694/1990.Where the number of cores exceeds 5, two adjacent cores are blue for reference and yellow for direction in each layer. The remaining cores in each layer are Grey. On specific request, number printing on cores can also be provided. The data and information given herein are purely as a guide. VIRAL takes no responsibility for any damages arising out of incorrect use. Following are some detail information of cables: Conductors: The conductors are drawn from bright electrolytic grade copper and annealed conductors are bunched together Insulation: Bunched conductors are insulated with specially formulated, in-house developed PVC compound with high insulation resistance values Sheath: In case of multi-core cables, the insulated cores are laid up to form the core assembly. The inner cores are coded for ease of identification as per National/International coding practices. The sheathing is provided with specially formulated PVC compound to facilitate not only ease in stripping but also to withstand mechanical abrasion while in use Quality Control: Rigid tests and checks at every stage, from raw material through manufacturing stages and finally upto the finished product ensure that the cables meet National / International standards, and consumer approval

Impedance 50 Ohms Insulation Material PE, PVC Color GREY/ BLACK Material Copper Type TRIAXIAL CABLES Brand VIRAL CABLES & WIRE Number of Core 1, 3, 2 Length 500 METERS Power/Voltage LOW VOLTAGE Cable Conductor And Alloys Packaging Type Rolls Cable Jacket Polyolefins Application Used as a Probe for Nuclear Leakage Measuring Detecting Instrument Diameter 0.2 mm Triaxial cable, often referred to as triax for short, is a type of electrical cable similar to coaxial cable, but with the addition of an extra layer of insulation and a second conducting sheath. It provides greater bandwidth and rejection of interference than coax, but is more expensive.

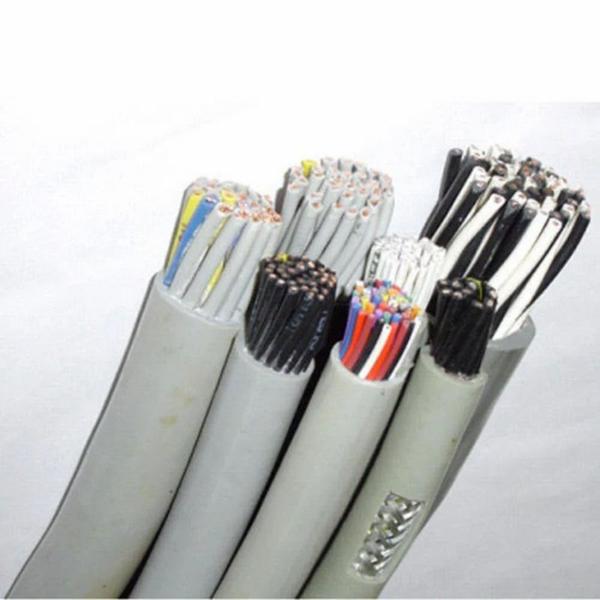

Conductor Material Copper Material Copper Number of Core 3, 5, Single, 4, 2 Brand Viral Color Black Armored GI Sheet Rated Voltage 450 / 750V Sheath Material PVC or Flame-Retardant PVC Instrumentation Cables offered comprises flame retardant control cables that perfectly support the requirements of instrumentation control. Features: Copper conductor coming with PVC insulated and sheathed finish Product coming backed by CE and other industry certifications Details: High quality construction finish Conductor support comprising stranded copper conductor with insulation support of PVC material Sheath options of PVC or flame-retardant PVC Insulation color as per standards Suitable for use in measuring controlling/regulation for assembly and production line Available as per standards as BS, DIN and others

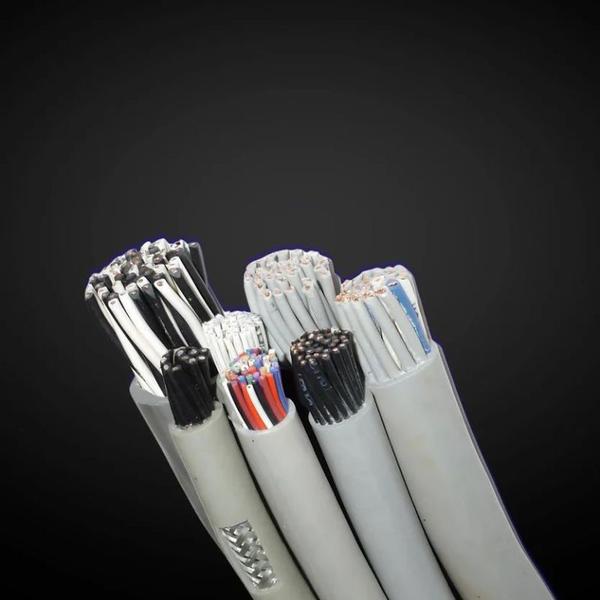

Number of Cores Multi Cores Number of Core 4, 5, Single, 3, 2 Power/Voltage 650/110 volts Packaging Type Rolls Conductor Type Copper Sheath Type PVC Min Nominal Size 0.05 sq.mm Max Nominal Size 120 sq.mm With vast experience and knowledge we are involved in offering an extensive range of Special Purpose Cables. These are highly reckoned among our clients due to their superior quality. Offered cables are manufactured using best quality ingredients under the supervision of highly skilled professionals to render maximum client satisfaction.

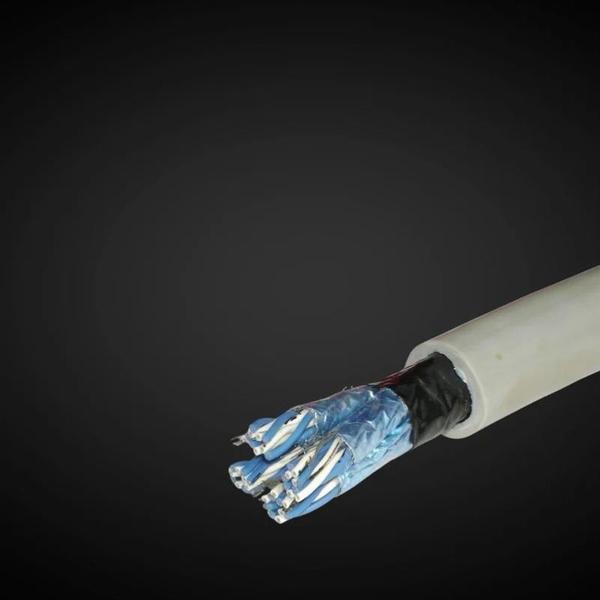

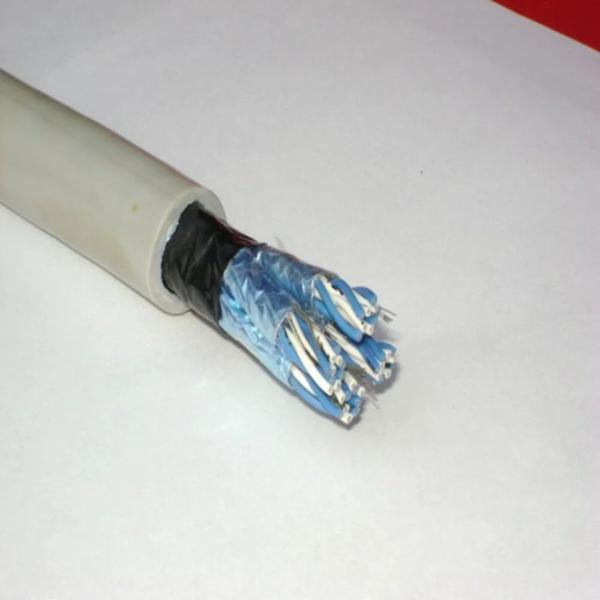

Conductor Material Copper Number of Core 2 Core, 3 Core, 4 Core Packaging Type Rolls Sheathing Material PVC,70 deg C / 105 deg C Halogen free FRLS PVC Compound,Polyethylene,TPE,HOFR and Silicon Rubber Armouring Material G.I. Steel Wire/Strip Min Nominal Size 0.22 Sq.mm. . Max Nominal Size 2.5 Sq.mm We at Viral Electronics manufacture Multipair Instrumentation Cables suitable for purpose of Instrumentation. In the projects related to power generation & distribution, chemical, fertilizer, sugar Industries and various other types industries. The process instrumentation plays an important role in measuring and controlling of various process in the manufacturing of commodities. Shield is provided to prevent harmful electrostatic interface. There are three basic reasons for providing an electrostatic shield in a cable. The first important reason concerns the need to keep external electrical disturbances from affecting the signal in the cable. The second reason is to prevent the signal in the cable from being detectable at location other than at the cable ends. And the third reason is the elimination of unwanted transfer of signal between circuits in the same cable classified as below. Range of Instrumentation Cables: Higher sizes of Electrolytic Bare/Tinned, Solid/Stranded Copper Insulation: We can offer insulation on conductors of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request Shielding: Aluminum Mylar taped with ECC with drain wire. Individual element and overall shielding as specified Or Shielding with Bare /Tinned / SPC Braided . Armouring: G.I. Steel Wire/Strip armoured. Sheathing: We can offer sheathing of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request. Details: BS-5308 (Part-I or II) IEC-189 (Part-I or II)

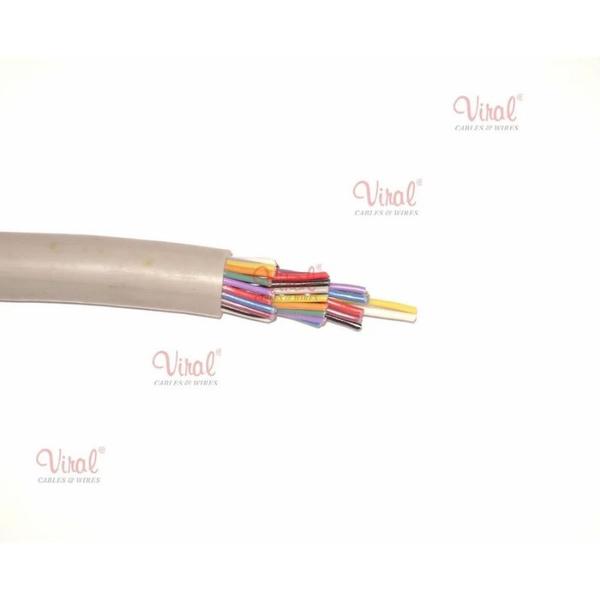

Conductor Material Copper Insulation Material 70 deg C / 105 deg C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber Armored G.I. Steel Wire / Strip Armoured Brand Viral Min Nominal Size 0.22 Sq.mm. Max Nominal Size 2.5 Sq.mm We at Viral Electronics manufacture Multi Core Shielded Instrumentation Cables suitable for purpose of Instrumentation. In the projects related to Power Generation & Distribution, Chemical, Fertilizer, Sugar Industries and various other types Industries. The process instrumentation plays an important role in measuring and controlling of various processes in the manufacturing of commodities. Shield is provided to prevent harmful electrostatic interference. There are three basic reasons for providing an electrostatic shield in a cable. The first important reason concerns the need to keep external electrical disturbances from affecting the signal in the cable. The second reason is to prevent the signal in the cable from being detectable at location other than at the cable ends. And the third reason is the elimination of unwanted transfer of signal between circuits in the same cable classified as below. Range of Instrumentation Cables: Higher sizes of Electrolytic Bare/Tinned,SPC, Solid/Stranded Copper Insulation: We can offer insulation on conductors of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request. Shielding: Aluminum Mylar taped with ECC with drain wire. Individual element and overall shielding as specified Or Shielding with Bare /Tinned / SPC Braided . Sheathing: We can offer sheathing of various types on insulating compounds such as PVC, 70° C / 105° C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber on request. Details: BS-5308 (Part-I or II) IEC-189 (Part-I or II)

Number Of Cores 3 core Brand Viral Material Copper Standards BS-5308 (Part-I or II), IEC-189 (Part-I or II) Sheathing Material PVC, 70 deg C / 105 deg C Halogen free FRLS PVC Compound, Polyethylene, TPE, HOFR and Silicon Rubber Min Nominal Size 0.22 Sq.mm. Max Nominal Size 2.5 Sq.mm Shielded Cables offered comprise shield fire resistant cables that are extensively used in different areas like in fire fighting plants. Features: Comes with aluminium foil and LSZH outer sheath Halogen-free cable with improved fire characteristics Details: Suitable for use in areas like fire alarm systems, emergency lighting Easy installation requirements Permitted operating temperature of conductor at +90°C Conductor options comprising bare copper ad insulation option comprising double insulation, cross-linked special compound Inner covering comprising glass fibre tape Shielding options of Al-laminated tape and tinned copper drain wire

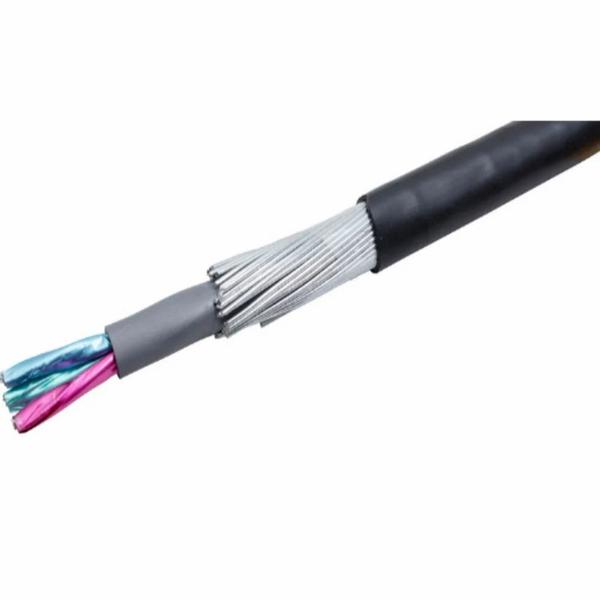

Conductor Material Copper Armored G.I. Steel Wire/Strip Armoured Packaging Type Rolls Number of Core 3 Sheathing 70 deg C / 85 deg C Grade PVC Conductor Insulation 70 deg C/ 85 deg C Grade PVC Min Nominal Size 0.22 Sq.mm. Max Nominal Size 2.5 Sq.mm. We at Viral Electronics manufacture Triad Shielded Instrumentation Cables suitable for purpose of Instrumentation. In the projects related to power generation & distribution, chemical, fertilizer, sugar Industries and various other types industries. The process instrumentation plays an important role in measuring and controlling of various process in the manufacturing of commodities. Shield is provided to prevent harmful electrostatic interface. There are three basic reasons for providing an electrostatic shield in a cable. The first important reason concerns the need to keep external electrical disturbances from affecting the signal in the cable. The second reason is to prevent the signal in the cable from being detectable at location other than at the cable ends. And the third reason is the elimination of unwanted transfer of signal between circuits in the same cable classified as below. Range of Instrumentation Cables: Higher sizes of Electrolytic Bare/Tinned, Solid/Stranded Copper Shielding: Aluminium Mylar tape screened with copper drain wire. Individually element and overall shielding as specified . Details: BS-5308 (Part-I or II) IEC-189 (Part-I or II)

Conductor Material Copper Protection Type Shielded Conductor Type Copper Min Nominal Size 0.5 sq mm Max Nominal Size 2.5 Sq.mm Armouring G.I. Steel Wire/Strip armoured Multi Pairs Shielded Instrumentation Cables offered find use as signal and control cables and supports transmission of data where protection against electro-magnetic field is required. Features: Fine strands of bare copper wire PVC core as per DIN and other industry standards Cores coming twisted in pair with PVC outer sheath PVC insulated and sheathed type screened cable Suitable for use as signal and data control cable in control circuits, computer systems, production lines Presence of tinned copper wire screen for offering protection from electromagnetic interference Conductors comprising plain annealed flexible copper Sheath comprising PVC finish
